Introduction
The balanced reactor adopts the whole E-type structure of amorphous alloy as the magnetic core, which eliminates the adverse effect of excessive high-frequency loss of ordinary iron core structure reactors. In addition, the magnetic core is divided into two parts, the upper and lower parts, which improves the core air gap and reduces the local overheating phenomenon of the original reactor stamping sheet structure. The effective combination of output reactor and filter loop reactor, in addition to suppressing system harmonics and improving the quality of the power grid, can also be used for three-phase dynamic balance in the line to adjust equipment that is prone to three-phase offset. Balanced reactors are suitable for industrial applications such as electrolytic plating where low-voltage, high-current (e.g., tens of volts, thousands to tens of thousands of amps) of adjustable DC power supplies are often required.

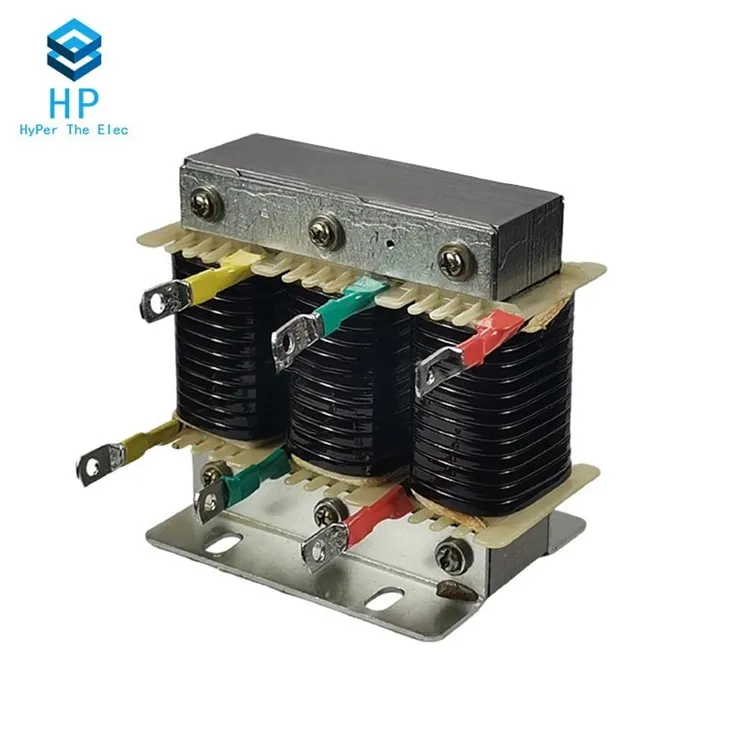

Product details
Apply:
1. Can be used for 380V~1000V system.
2. Rated insulation level 3kV/min.
3. Temperature rise limit of each part of the reactor: the temperature rise of the iron core does not exceed 85K, and the temperature rise of the coil does not exceed 95K.
4. The noise of the reactor meets the corresponding international requirements.
5. The reactor can operate for a long time at 1.2 times the rated voltage.
6. temperature resistance grade F grade.
Original: Wuxi, Jiangsu, China
Certification unit: ISO9001, CE, ISO14001, OHSAS18001, etc.
Price: Negotiable
Payment terms: TT, LC
Delivery date: negotiable
Packaging: Export standard
Markets: Middle East/Africa, Asia, South America, Europe/North America
Warranty: 1 year
Minimum order quantity: 1 set
Product features
1. The reactor is a single-phase structure with a dry iron core.
2. The core adopts high-quality low-loss cold-rolled oriented silicon steel sheet, the core column is divided into uniform small sections by multiple air gaps, the air gap is spaced by epoxy laminated glass cloth plate, and high temperature and high strength adhesive are used to ensure that the reactance air gap does not change during operation.
3. The coil is made of oxygen-free copper wire or copper foil winding, arranged tightly, and the interlayer and surface are covered with F grade insulation.
4. After the coil and iron core of the reactor are assembled into one, they are pre-baked→ vacuum impregnation paint → hot baking curing, and the F-grade impregnated paint is adopted. The coil and core of the reactor are firmly bonded to ensure noise-free operation at high temperatures.
5. The fasteners in the main magnetic circuit of the reactor are made of non-magnetic materials to ensure that the reactor has low power consumption and temperature rise.
6. The exposed terminals are made of tinned copper row or cable terminals to ensure reliable contact; clamps and other anti-corrosion treatments such as galvanizing or painting are made to ensure that there is no rust.
